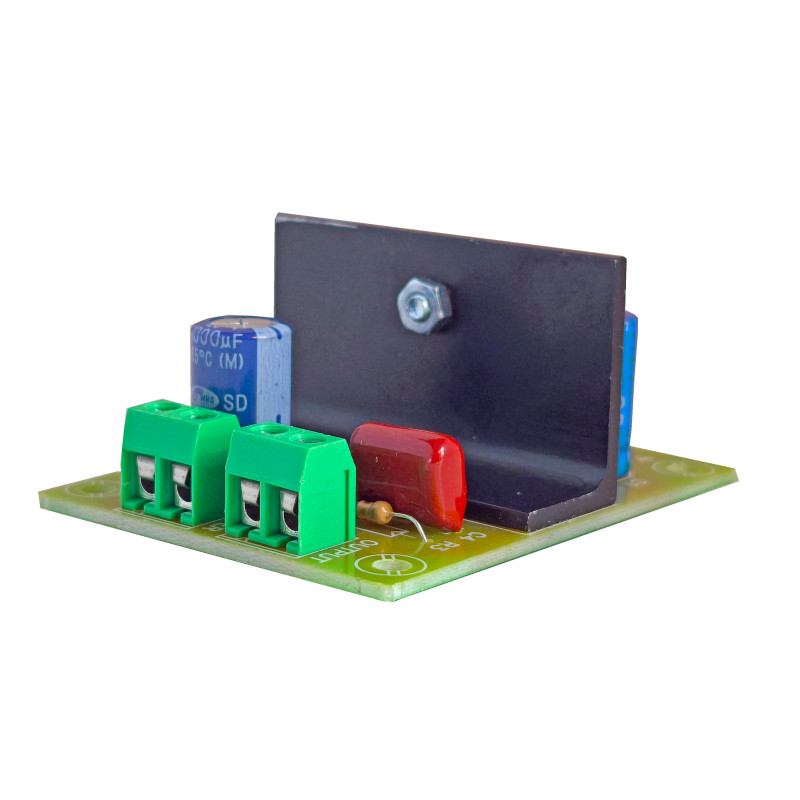

E-2 5W MONO POWER STAGE
€16.82
Tax included
Reference: E-2
Power supply: 12 VDC (6-15 V).
Minimum consumption: 100 mA.
Maximum consumption: 500 mA.
Input sensitivity: 100 mV.
Maximum input signal: 1 V.
Output impedance: 4-8 W.
Frequency ranges: 30-18,000 Hz.
Distortion at 5 W: 1%.
RMS power: 5 W.
Musical power: 7.2 W.
Dimensions: 60 x 47 x 27 mm.
Weight 30g.
Low frequency mono power stage, specially design for purposes requiring a medium power and a high quality.
Power: 5 W. R.M.S. (4 Ohms).
Musical power: 7,2 W.
Minimum Signal input: 100 mV.
Frequencies margin: 30 - 18.000 Hz.
Power Supply: 6-15 V. D.C. / 250 mA. (Module FE-2).
Recommended box C-7523
