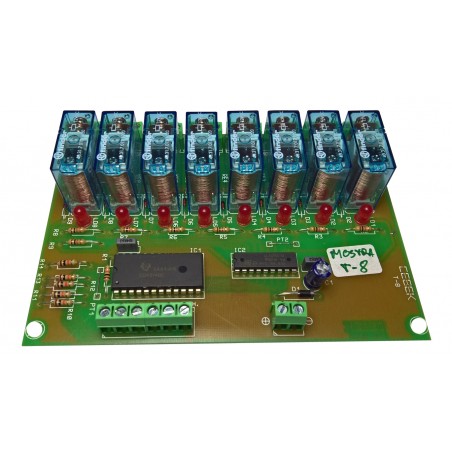

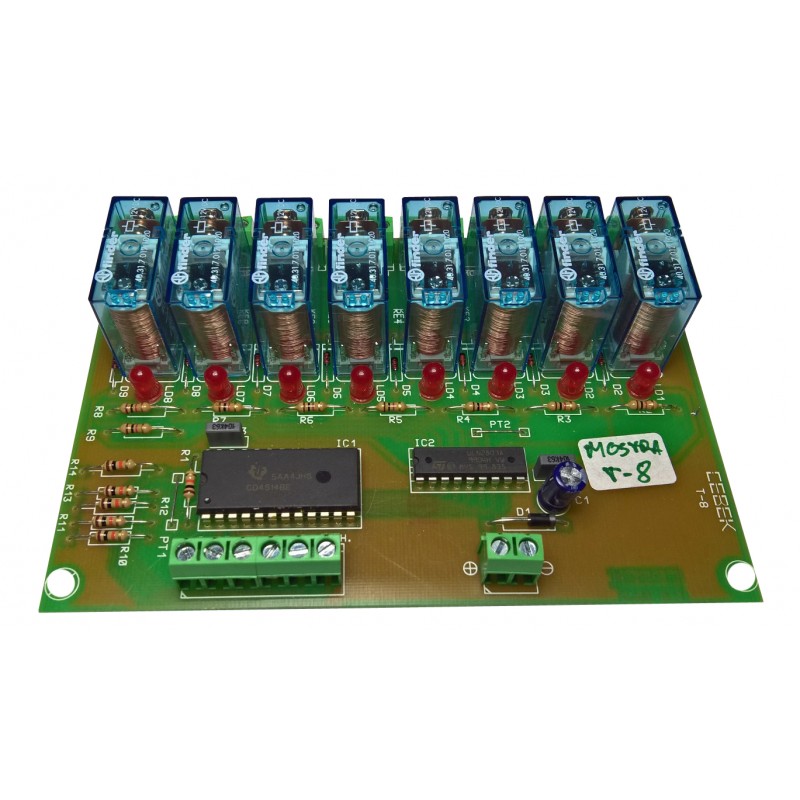

T-8 8 RELAY OUTPUTS BCD CONTROL MODULE

BCD decoder - relay outputs.

Consisting of 8 relays, it will decode the BCD code, (binary), from 0 to 7, connecting the corresponding relay to the entered code.

Its main advantage is the “Latch” or “strobe” function that it incorporates and that allows multiplexed control of several modules with a single BCD code.

It also supports inhibition input.

It has terminals, signaling leds and P.I.P.

Especially suitable for implementing a large number of outputs with few control signals.

Recommended power supply FE-103
